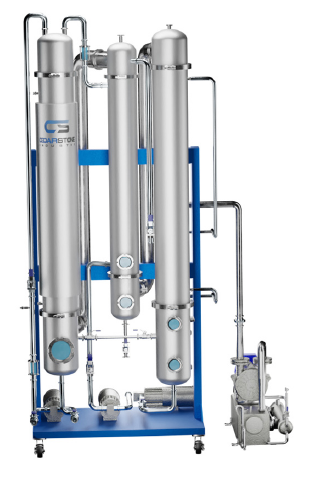

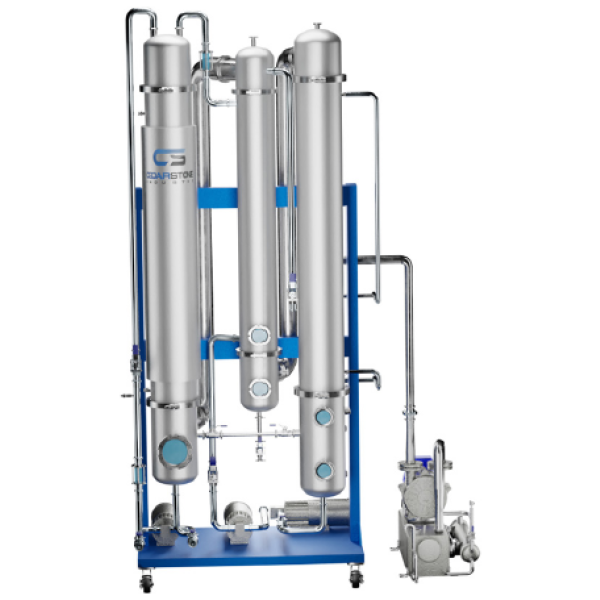

FastVap 40 Falling Film Ethanol Recovery System

Processing Equipment

FastVap 40, Ethanol Recovery System

Processing Capacity: 40 gallon/hour . Continuous Feeding, and Discharging Operation. Class I Div I rated, portable C1D1 display tablet. 100% stainless steel construction, 316L in wet area. GMP Compliant. 1 x Liquiflo ( or equivalent )Feeding Gear Pump. 2 x Liquiflo ( or equivalent )Discharging Gear Pump. Powerful Water Ring Vacuum Pump Integrated with Circulating Cooling System to allow Continuous Operation, located in Non-Classified Area. Digital temperature measurement at multiple location. UL certified control built in Houston, Texas. Optimized Heat exchanger process to maximize efficiency and energy efficient. Entire System is Vacuum Rated, and Constructed in ASME Certified Shop.

18KW Water Temperature Control Unit

Water Heater, Single Zone Temperature Control Unit. · 3/4 HP Pump: 45 GPM at 22 PSI to process. · 480V 3-Phase or 208/3/60 by request · 250°F Max Operating Temperature · Dimensions: 16W x 33.4D x 28H · Shipping Weight: 273 Lbs · Microprocessor based, PID controller, 1/16th DIN · Full featured water temperature control unit designed for continuous, reliable service.

36KW Oil Temperature Control Unit

· Model: T-1254MS · Cabinet Type: Big Foot · Fluid Type: Oil · 16 Gallon Reservoir Tank · Heating Capacity: 36KW · Cooling: 4.0 Sq. Ft. Heat Exchanger · 2.0 HP Pump · 24 gpm @ 50 psi · Voltage: 460V/3/60HZ · Zones: 1 · Nema 1 . Delta T Systems recommends Paratherm NF Heat Transfer Fluid for operating temperature from 100°F to 650°F

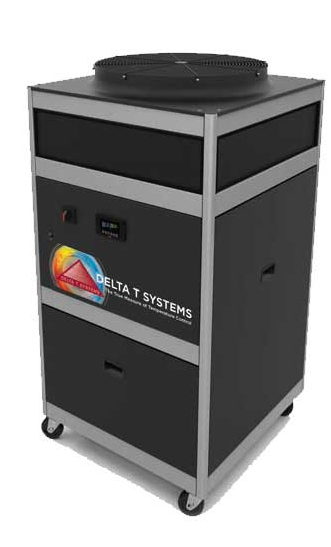

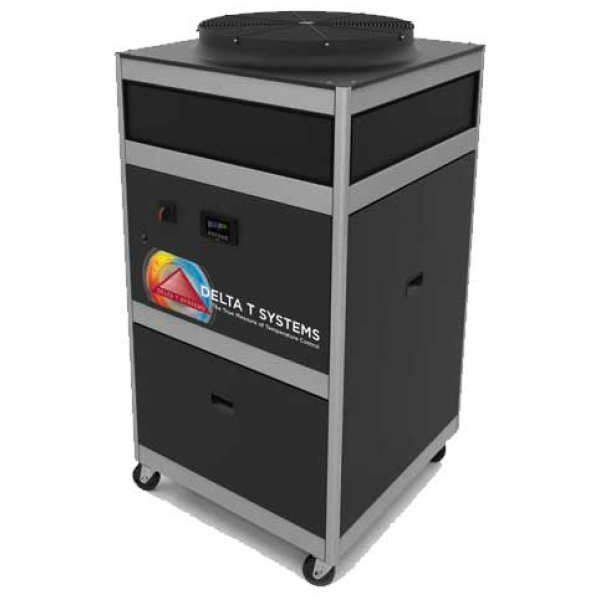

15 Ton Variable Speed Chiller

Model: VSPA015-XNCSBLI-XXXXX. Custom Engineered Unit. Variable Speed Chiller  Model: VSPA-015 . Nominal Capacity: 15 Tons. Voltage: 460V/3PH/60HZ. Condenser Type: Air-Cooled. Condenser: Aluminum Microchannel. Evaporator: Brazed Plate. Environment: Indoor. Mounting: Casters. HMI Display: Local Display. Condenser Fan: Standard Pressure Fan. Communication: Modbus RTU RS485.

- +
